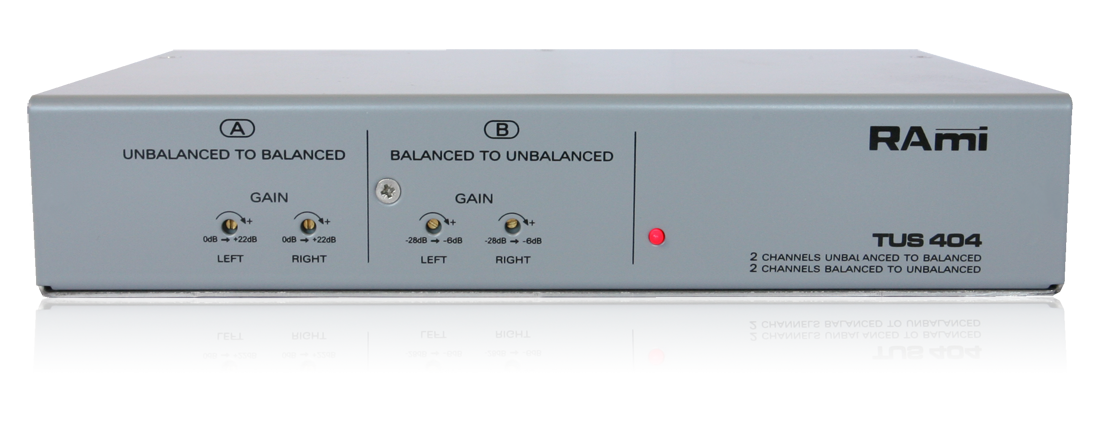

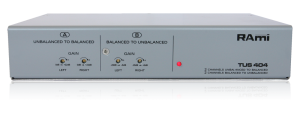

TUS404
Dual stereo tranformer
TUS404 has been mainly designed to interface the sources and unbalanced audio equipments with balanced installations. It has two distinct sections A and B:
A: Two right and left channels affords to transform an unbalanced modulation to a balanced modulation. The gain is adjustable from 0dB to +22dB. (independent right and left controls).
B: Two right and left channels affords to transform a balanced modulation to an unbalanced modulation. The gain is adjustable from -22dB to 0dB. (independent right and left controls).
- Option Transfo de sortie TRA20 sur partie A.
- TRA20 output transformater option on section A.
- Precise adjust via multiturn.
APPLICATION:
- TUS404 has been mainly designed to interface the sources and unbalanced audio equipments with balanced installations.
- It is quite capable of connecting a cassette player, a MD, a DAT or a CD player to a totally balanced professionnal installation.
- One interesting use is the possible insertion of an unbalanced appliance into a balanced system (half of the TUS404 is used on downstream side, and the other half is used on upstream side of the equipement).
- Interface of digital audio broadcaster sound card.
ACCESSORIES:
- FRT100: Front panel adapter for fitting one “SLIMRACK.”
- FRT200: Rack 19" 1U front panel adapter for 2 “SLIMRACK” units.
- FRT300: Cover plate for FRT200.
