PCS300

Headphones amplifier



This small stereo amplifier has a sophisticated Output channel element which works at low impedance and solves problems created by the low impedance headphones.

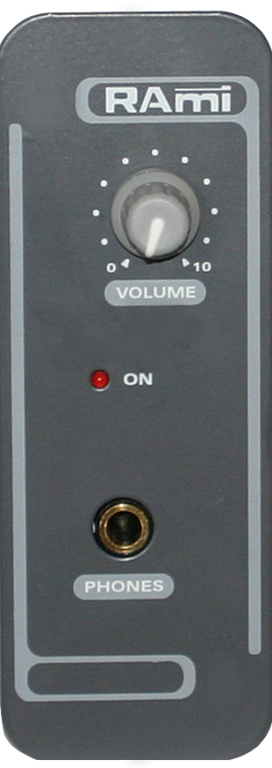

  • Front panel headphones Output (3/4" jack) and volume control.

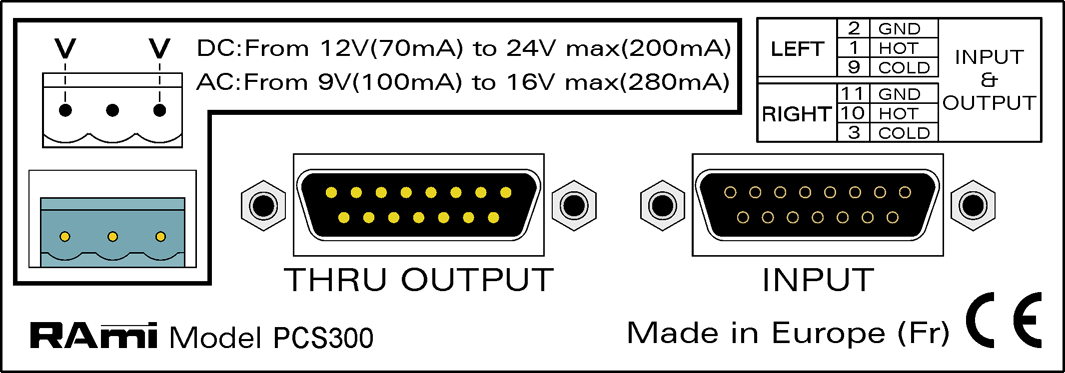

  • Input modulation on dB-15 pts female connector.
  • Line Output channel for picking the modulation up and sending it to another PCS300.
  • The power supply is also sent to another PCS300.
  • Operates with an external PCS320 power supply.



APPLICATION:

PCS300 is indispensable in the "SPEAK" studios as the presenter and his guests need reception headphones.

PCS300
0.50 Kg

48 x 140 x 70 mm

3ans francais
