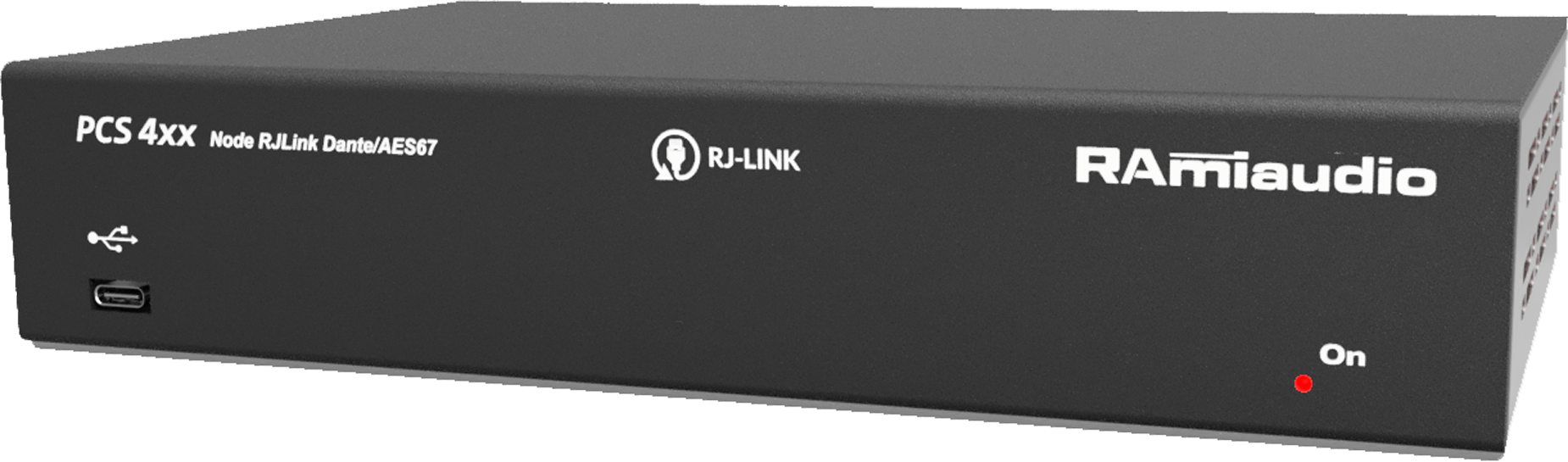

The PCS402 is a 2-in-1 product designed specifically for our RJLink range of equipment. It allows our RJLink interconnection system to interface with a DANTE or AES67 IP audio network. It incorporates both a 4-in/4-out DANTE/AES67 audio converter and a 24V/1.5A power supply with overload protection.

The PCS402 can power up to 18 PCS304, PMI103 or PRF75A units.

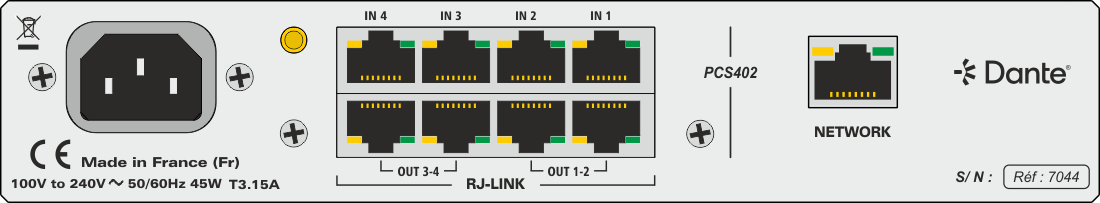

It includes in a slimrack case:

•     4 analog audio inputs to 4 RJLink inputs
•     4 analog audio outputs to 4 RJLink outputs

An LED indicator shows the presence of audio modulation on each RJLink input/output.

Each 24V power output is protected against short circuits by an automatically resettable protection circuit. LED indicator for overload on each output.

Compatible with XRJ102M or XRJ102F adapters. This equipment allows easy interfacing of a stereo audio connection on XLR.


ACCESSORIES:

• FRT100: Front panel adapter for fitting one “SLIMRACK”.
• FRT200: Rack 19" 1U front panel adapter for 2 “SLIMRACK” units.
• FRT300: Cover plate for FRT200.
