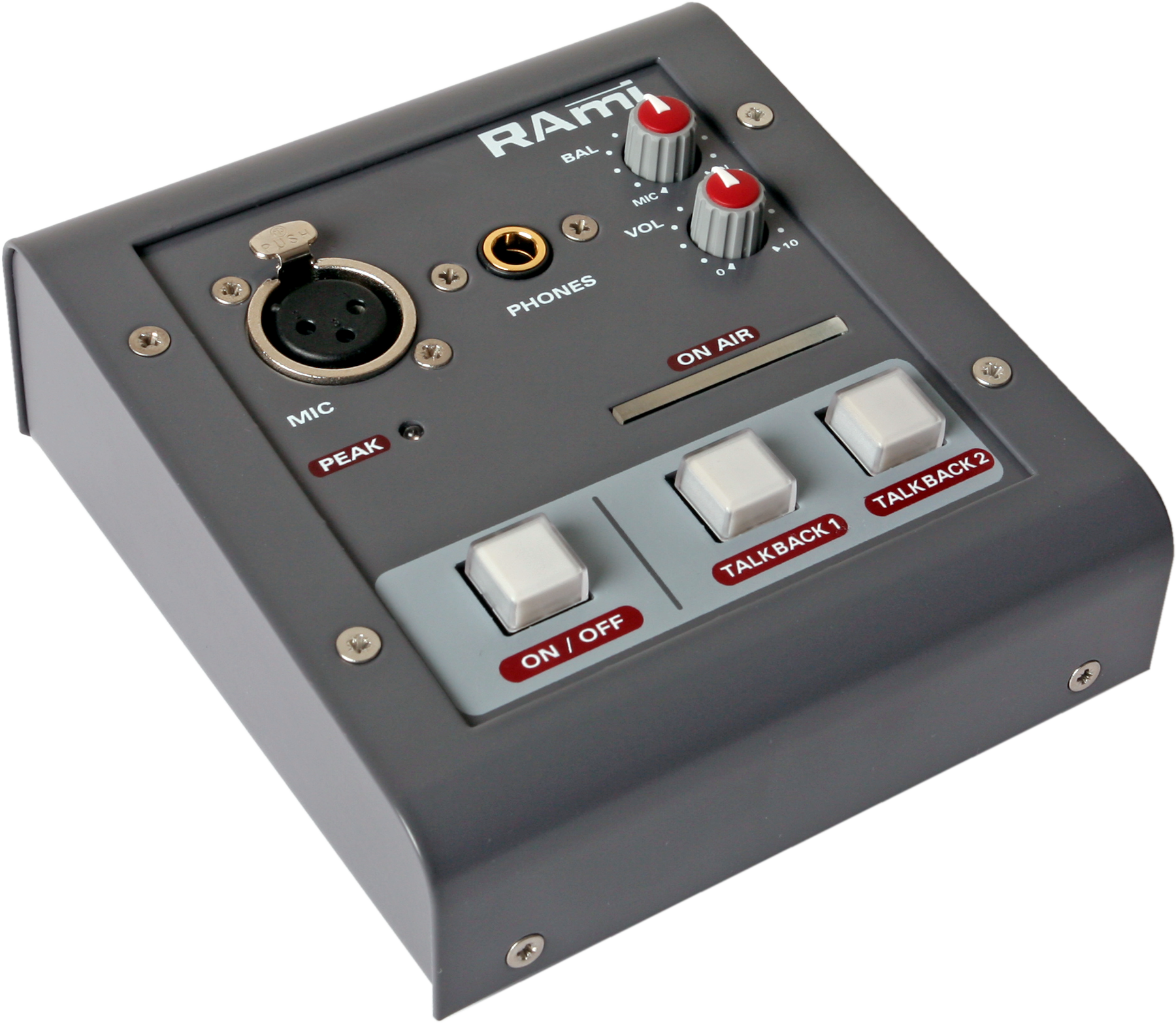

PRT 666-2 is a multifunction desk, answering to mobile or fixed various needs. It features :

• One ultra low noise microphone preamplifier with input level control and a line level balanced output. Option : 48V phantom supply.
• One ON/OFF switch enabling / disabling the line output, and a validating loop using an opto-coupler.
• Two switches 1 and 2 with both balanced outputs, and a validating loop using opto couplers.
• One ON AIR signal internally or externally driven.
• One external program stereo input to feed the internal headphone amplifier.
• One order circuit with automatic main program fade, controled by internal talkback signal or an external loop or both.
• Talkback can be despatch to both earpieces, either left or right.

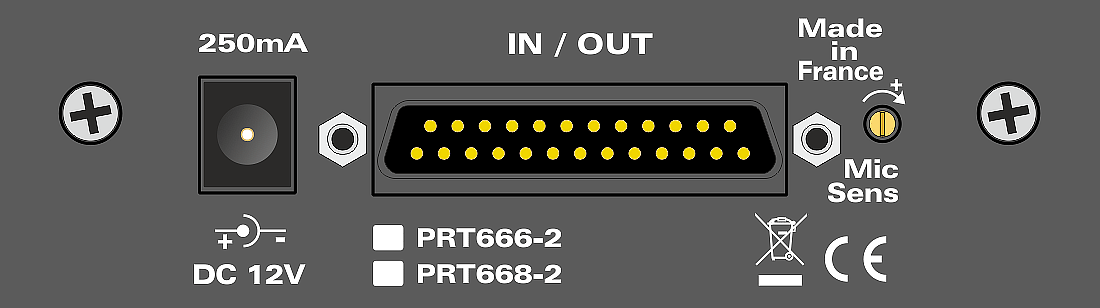

• Thanks  to a single dB25 connector, insertion is fast and easy.
• Used with a codec, PRT666-2 builds a stand alone remote working desk for journalists.

USES:

• Commentator desk.
• Remote transmission for external events.
• Translating desk.
