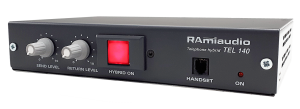

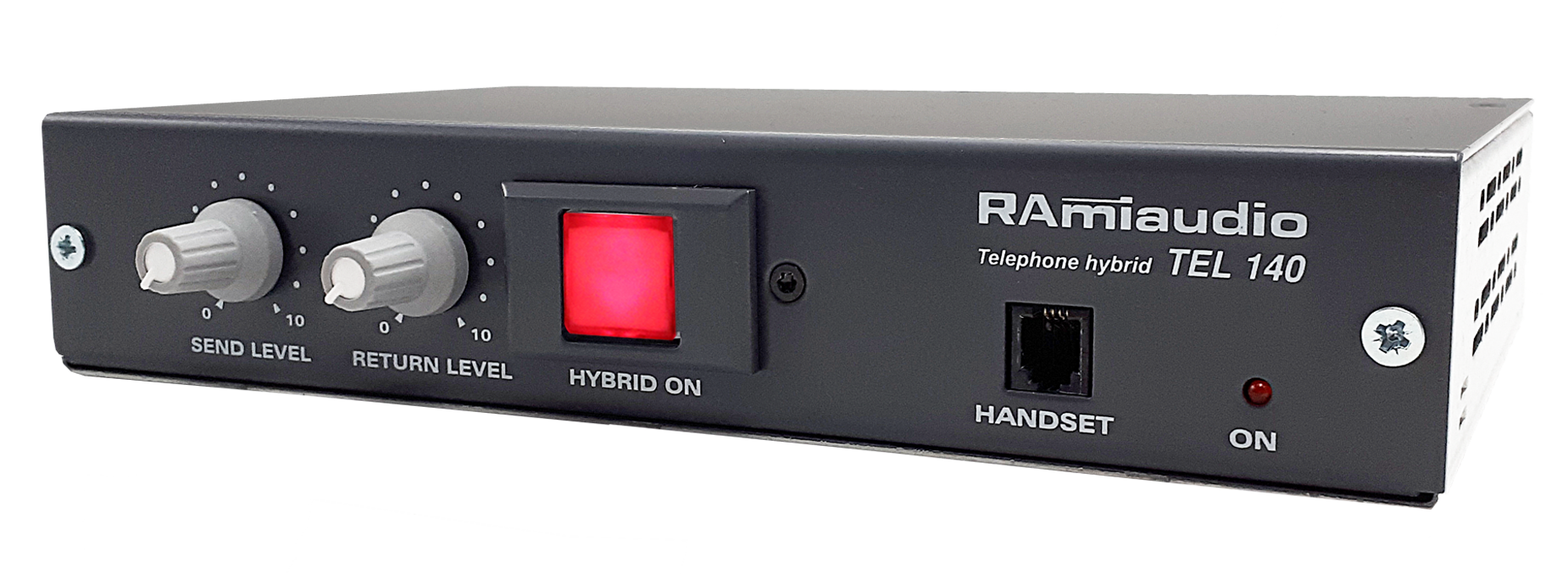

TEL140

Telephone hybrid



This equipment is designed to connect a mixing desk and a send / return from a telephone line, allowing to send music and microphone signals, to a remote correspondant, as well as to transmit his signal on the sound system.

Instead of using a classical hybrid on the telephone line, TEL140 is connected between the handset and the telephone base. The main advantage is that it works with any kind of equipment, POT, digital or IP.

Its small size, allows to use it on a journalist's desk without caring the telephone line.



Three connections to the mixing console are possible:

  • At its output in insert left right (unbalanced cinch).
  • As a derivation when the desk provides an aux send / return (XLR balanced)
  • To a broadcast console featuring N-1 channel (XLR balanced).

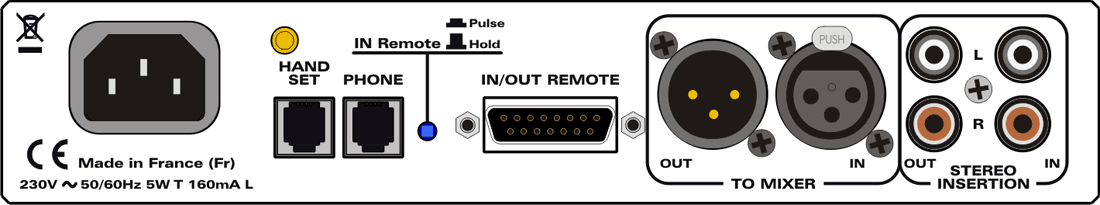

The handset plugs on the rear or front panel according to the needs. A RJ9/RJ9 wire is supplied as standard to allow connection between handset and telephone base.



ACCESSORIES :

  • FRT100: Front panel adapter for fitting one “SLIMRACK.”
  • FRT200: Rack 19" 1U front panel adapter for 2 “SLIMRACK” units.
  • FRT300: Cover plate for FRT200.
TEL140
1.50 Kg
SLIMRACK
220 x 44 x 150 mm

3ans francais
