TUS202
Dual amplifier analog
This top quality dual amplifier adapts an unbalanced or balanced source to a balanced output with transformers. The gain adjust, the output channel low impedance, and the output channel high level allow TUS202 to be integrated into a professional installation.
- Both channels can be used in stereo or as two independent channels.

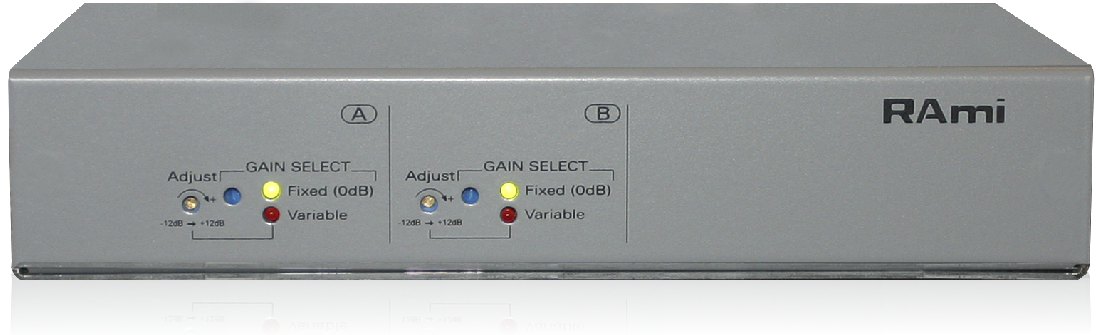

- On front panel, the output/input gain can be fixed (0dB) or variable (+/-12 dB adjust), independently on each channel.
APPLICATIONS:
- Level matching of unbalanced sources
- Console and mixer level matching and balancing
- Specialised lines interfacing
- Long distance, balanced modulation transport
- Interconnection of studios with galvanic insulation via output transformers.
ACCESSORIES:
- FRT100: Front panel adapter for fitting one “SLIMRACK.”
- FRT200: Rack 19" 1U front panel adapter for 2 “SLIMRACK” units.
- FRT300: Cover plate for FRT200.
