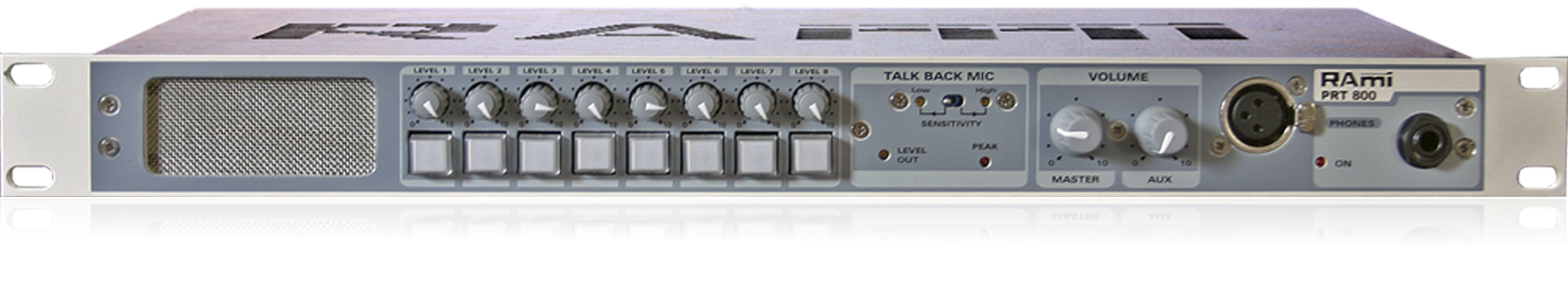

PRT800 is an eight channel intercom. Its 1 unit 19 pouces cabinet, eases the fitting in report vehicles and mobile control rooms. An auxiliary return, automaticaly fades on talk back input, allowing the local program or antenna return monitoring.

• Microphone front panel XLR input connector with / without phantom supply.
• 2 input level control with fast switching, for quick matching to a locally available microphone.
• Microphone level limiter.
• After limiter microphone line level output control.
• One microphone output (line level) non switched and 8 switched outputs.
• 8 talkback returns associated to the 8 outputs.
• Automatic detect on talkback inputs with lighting of the associated button allowing the call identification.
• "RED" input, to cut the internal loudspeaker when PRT800 is closed to a microphone.
• 0dB automatic fade of speaker return when using the talkback facility.
• Front panel headphones plug and rear panel external speaker plug switching the internal speaker.
