AMC230

Archives - Analog local monitoring

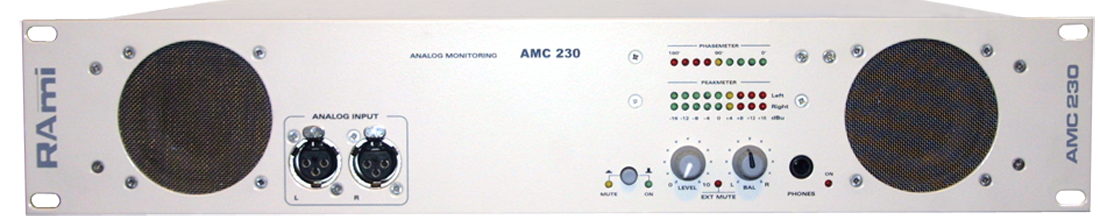

AMC230 is a two channels local reception amplifier (2 unit 19" rack), owning an analog audio input.

  • Volume level and balance control via VCA.
  • Phasemeter on led bargraph for a complete monitoring of the modulation.
  • Leds peakmeter (dBu).
  • Headphone output in front panel  (6.35mm jack). Automatic switching of internal speakers.
  • Mute order via remote control.

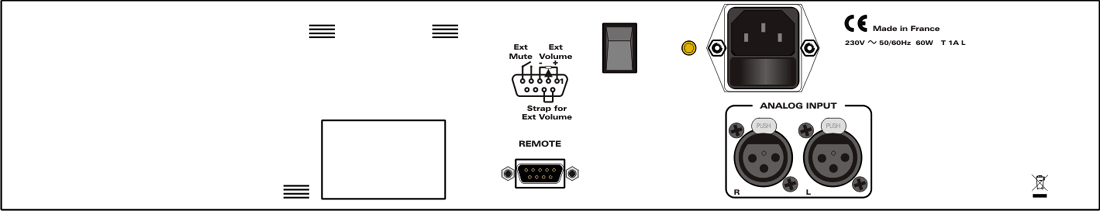

  • Analog balanced inputs available on the front and rear panel.
  • Female DB9 remote control connector (volume and mute).
  • Volume control either via front panel switching or via external potentiometer.


APPLICATION:

  • Local monitoring (bay-mounted).
AMC230
6.20 Kg
2U - 19"
483 x 88 x 230 mm
