Studio auto mute red /green

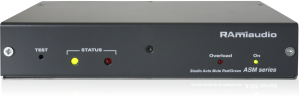

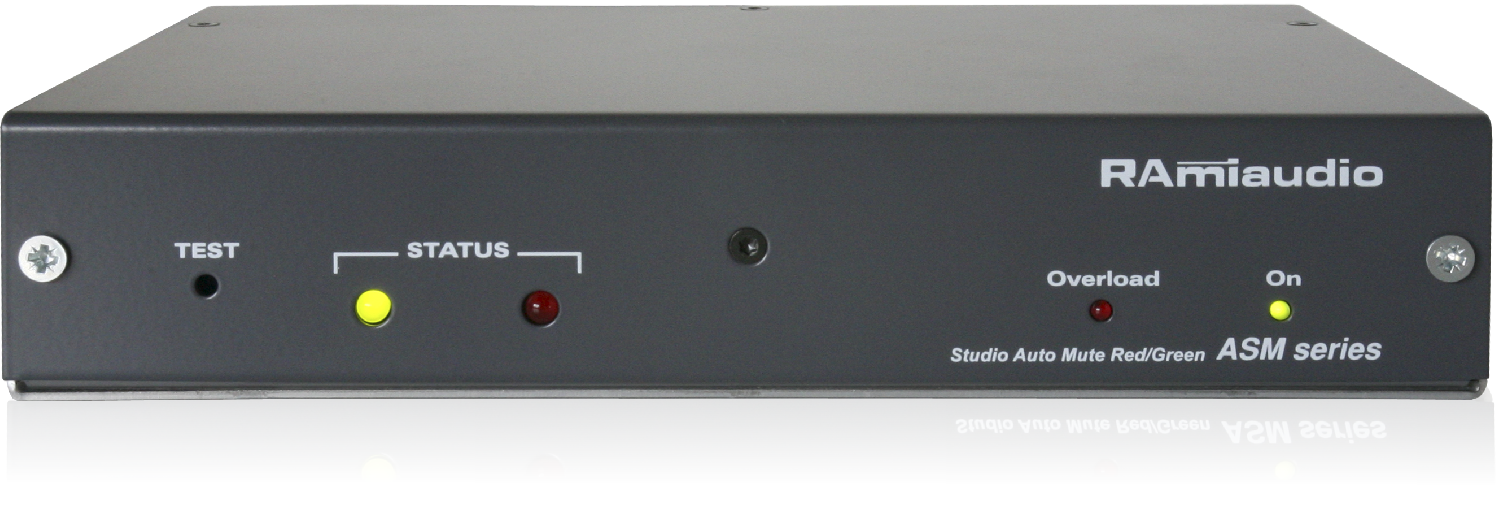

ASM120D combines the functions of the Red/Green On Air switch with those of the Automatic Studio Monitor Mute. It directly controls RGL260 (Red/Green indicators) and RGL500 ("On Air" visual display) interfaces to indicate the ON AIR/OFF AIR function.

The Studio Mute uses to automatically disconnect the studio sound control; the order is carried out by an loop or à power.

Two types of Led visual displays can be interfaced with ASM120D:

  • RGL260, RED/GREEN 20mm diameter LED visual displays.
  • RGL500, red LED "ON AIR" visual display.

RGL260 and RGL500 operate under 24V, order voltage is supplied by ASM120D.



  • FRT100: Front panel adapter for fitting one “SLIMRACK.”
  • FRT200: Rack 19" 1U front panel adapter for 2 “SLIMRACK” units.
  • FRT300: Cover plate for FRT200.
3.50 Kg
220 x 44 x 150 mm

3ans francais
